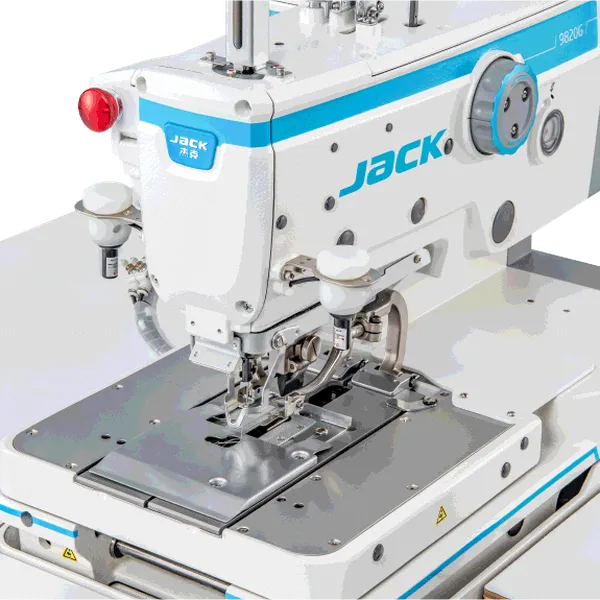

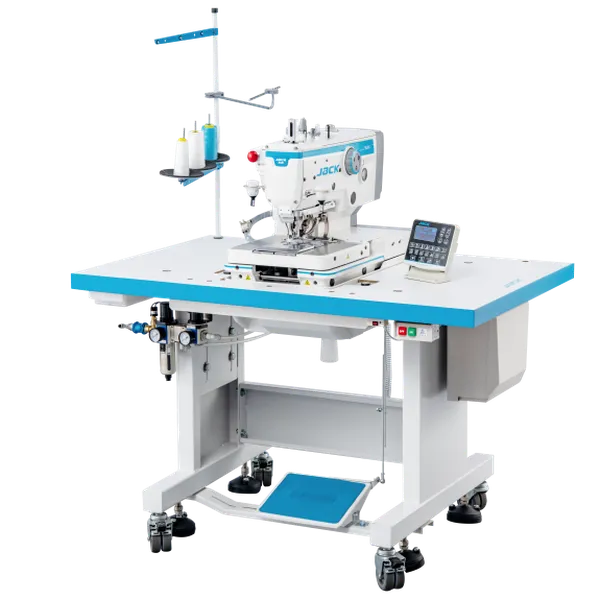

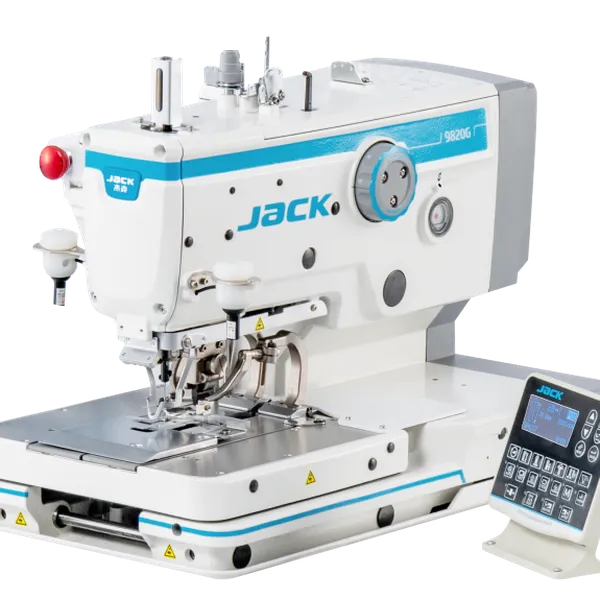

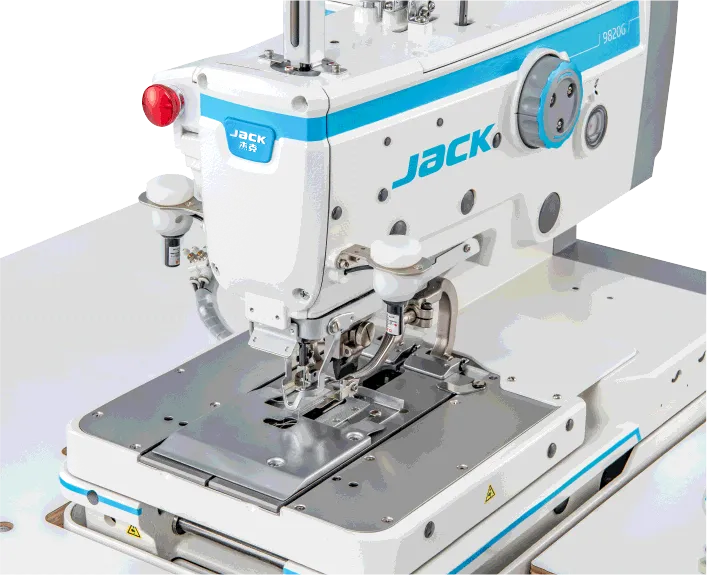

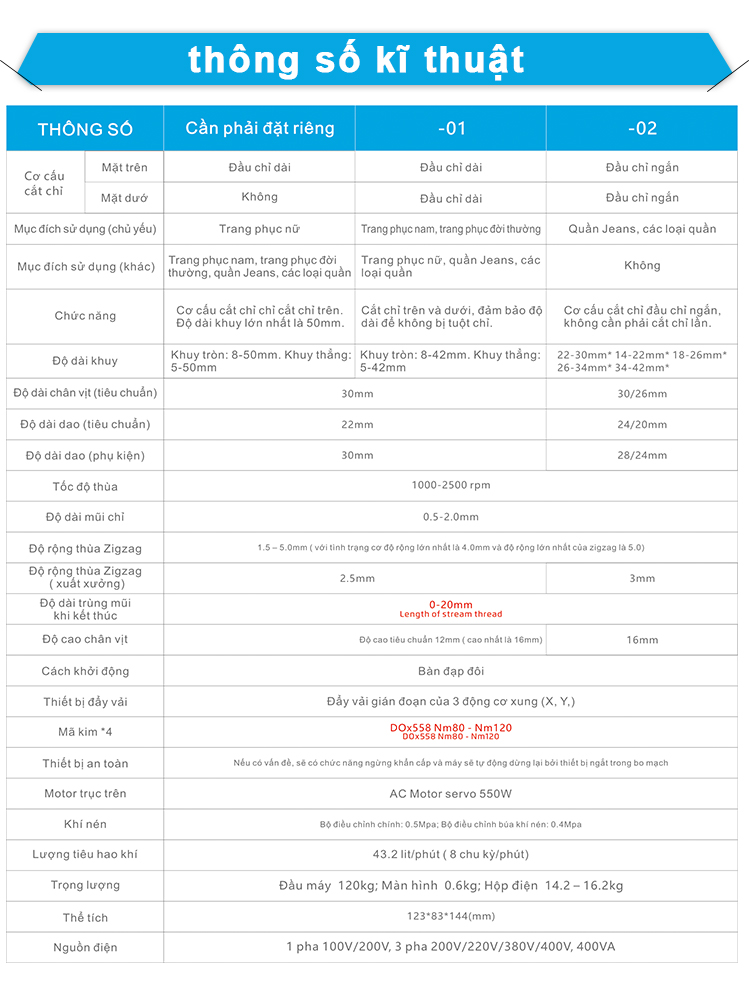

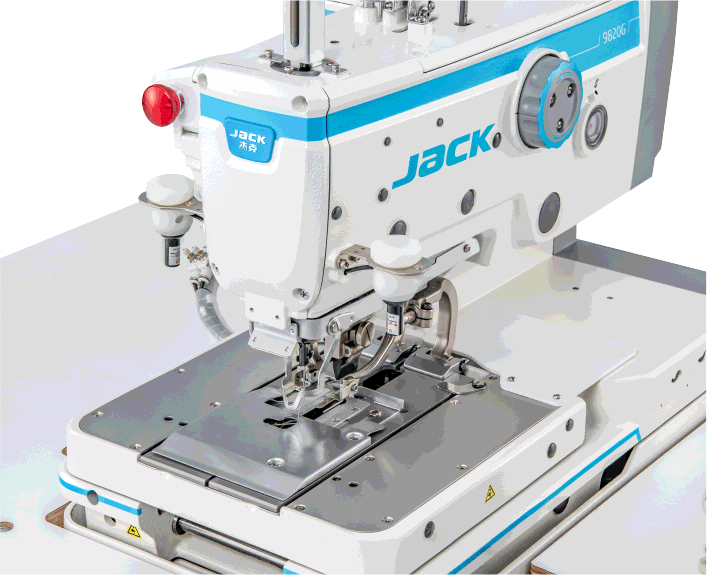

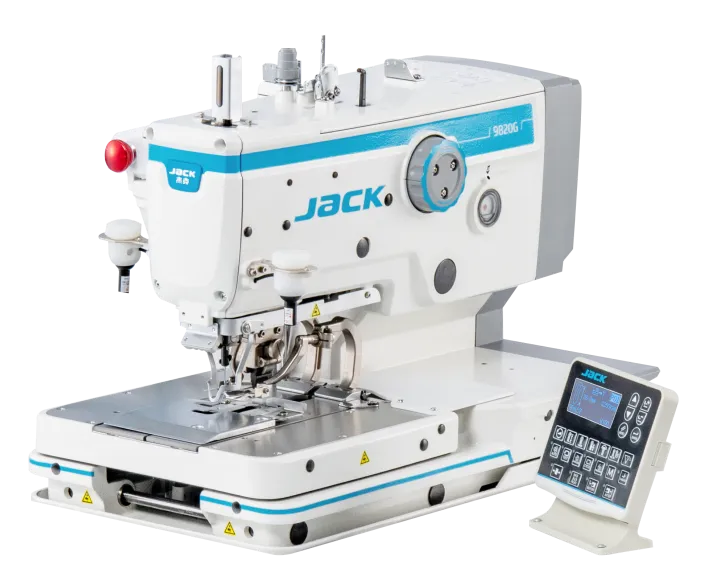

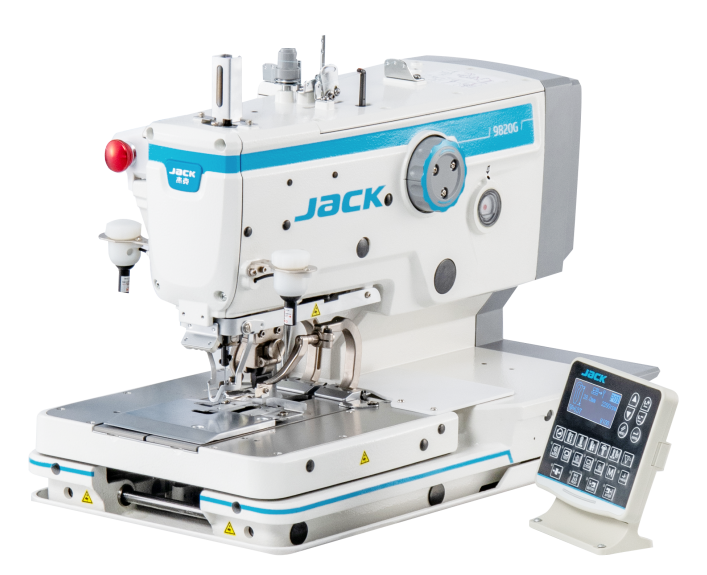

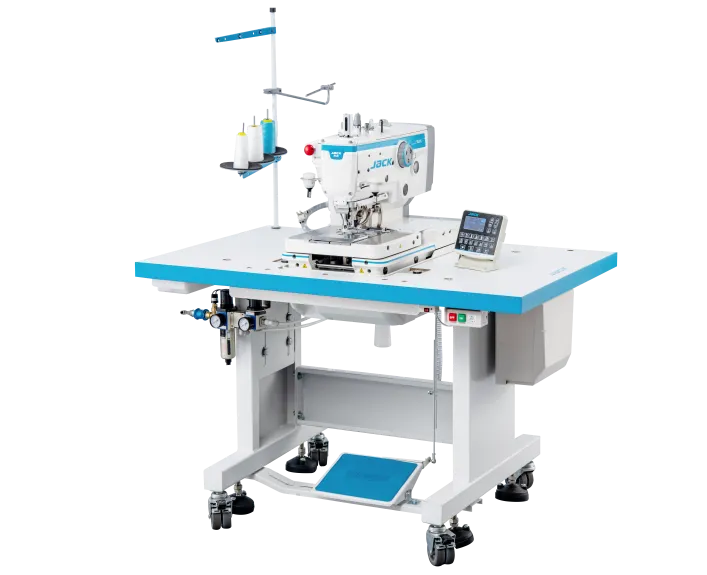

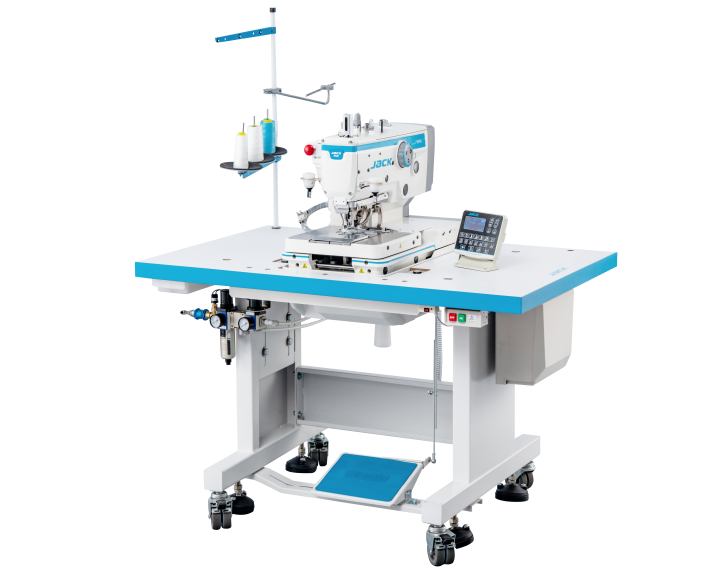

| Model | Jack JK-T9820G-01-D/P |
|---|---|
| Needle Thread Trimmer | Long Thread Trim |
| Bobbin Thread Trim | Long Thread Trim |
| Main Applications | Men's Clothing Casual Clothing |
| Other Application | Suit-Dress Jeans Trousers |
| Function | Trimming both needle and bobbin thread |

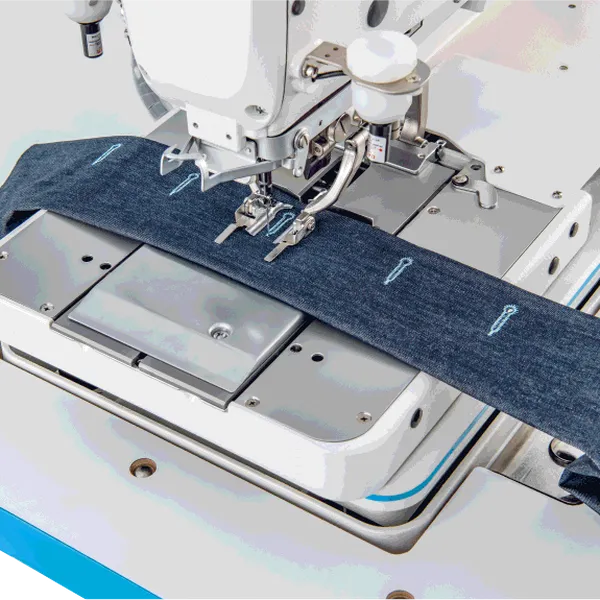

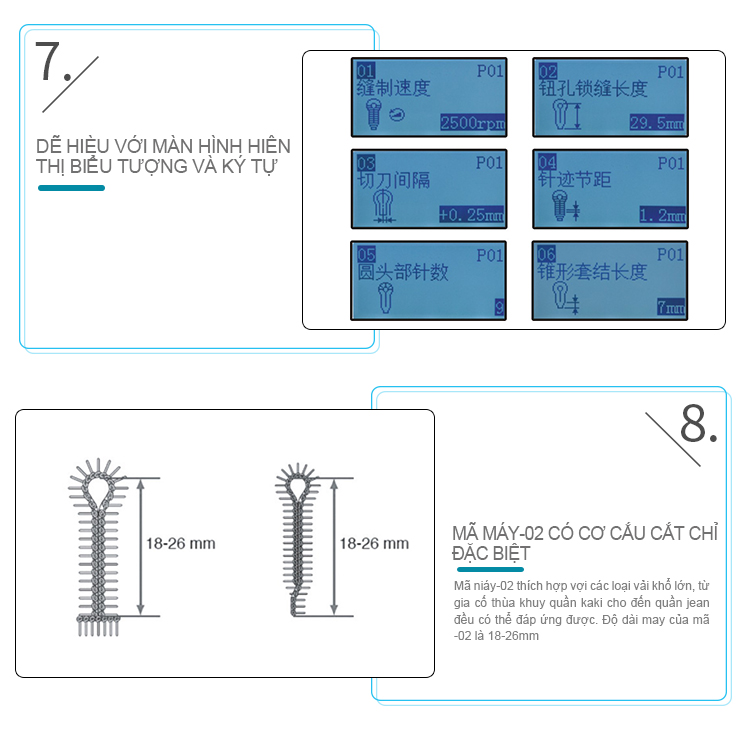

| Sewing Length | Round Head Eyehole: 8 - 43mm Straight Button Hole: 5 - 42mm |
| Press Foot Length (Standard) | 30mm |
| Length of Hammer (Standard) | 22mm |
| Length of Hammer (Accessory) | 30mm |
| Max Speed (s.p.m) | 1500 - 2500 |
| Needle Code | 0.5 - 2.0mm |
| Zig Zag Sewing Width | In mechanical conditions, it is 4.0mm wide at the most and the zigzag sewibg width is 5.0mm at most |
| Zig Zag Sewing Width (Factory Setting) | 2.5mm |
| Length of stream head | 0 - 20mm |
| Height of Work Clamp | Standard Height is 12mm (May reach 16mm at highest) |
| Start-off Mode | Double Pedal Switch |
| Fabric Feeding Device | Intermittent cloth-sending of 3 pulse motor (X, Y) |
| Machine Needle | DOx558 Nm80 - Nm120 |
| Safe Setting | If there are any prblems, the inner settiong with urgent stop function and driven by safe circuit will automatically stop the machine |
| Upper Shaft Motor | WAC Servo Motor 550W |

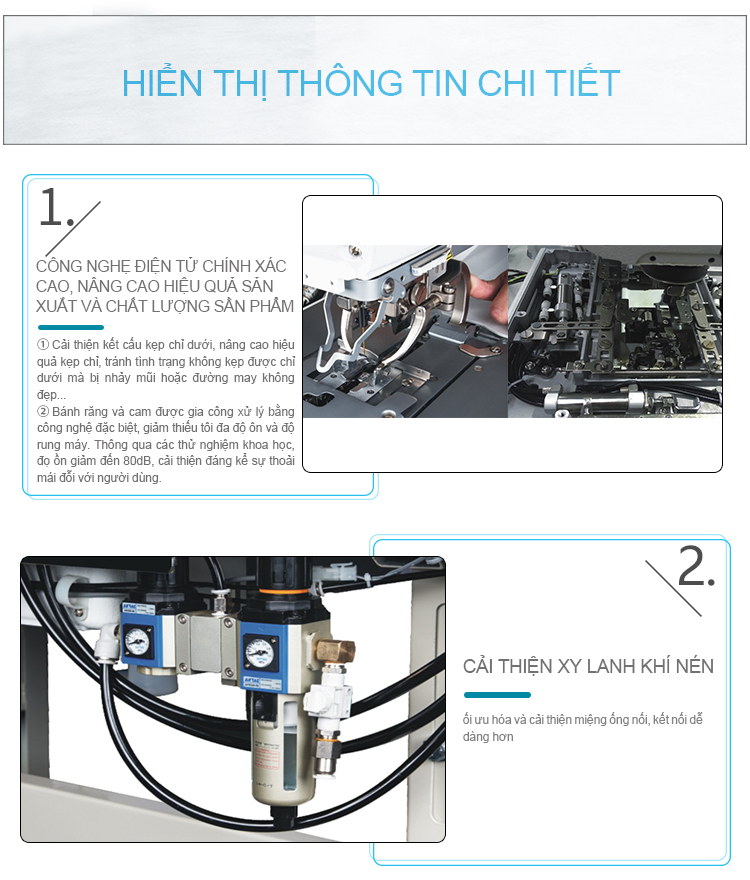

| Air Pressure | Main Regulator: 0.5Mpa Hammer-Pressure Regulator: 0.4Mpa |
| Air Consumption Volume | 43.2 liter/minute (8 cycles/minute) |
| Weight | Machine Head: ~120kg Operation Board: ~0.6kg Control Box: 14.2 - 16.2kg |
| Volume | 123x83x144 mm |
| Power Supply | Single Phase 100V/200V, Three phases 200V/220V/380V/400V, 400VA |
