Máy vắt sổ cào 4 chỉ Jack C5T-4-M03/333,Máy vắt sổ cào 5 chỉ Jack C5T-5-M03/333

Name: Máy vắt sổ cào 4 chỉ Jack C5T-4-M03/333,Máy vắt sổ cào 5 chỉ Jack C5T-5-M03/333
Brand: JACK NO.1
SKU: C5T-4
Price: 23500000 VND
Availability: InStock
Rating: 5 (1 reviews)

23.500.000VND

Nhà sản xuất:

JACK NO.1

Mã sản phẩm:

C5T-4

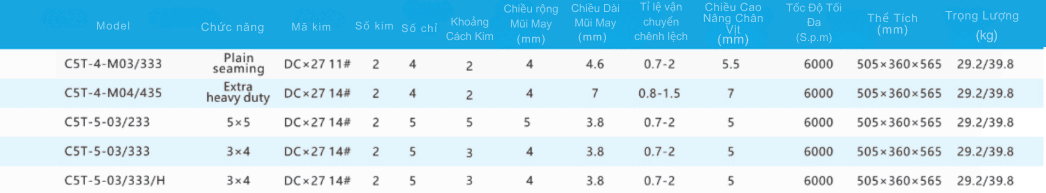

Model	Jack C5T-4-M03/333
Function	Medium / Light
Needle	DCx27 #11
No. of Needles	2
Needle Distance	2
Stitch Width	4mm
Stitch Length	4.6mm
Differential Ratio	0.7-2
Presser Foot Lifting Height	5.5mm
Max Speed	6000 s.p.m
Volume	505 x 360 x 565 mm
Weight	29.2kg / 39.8kg

Thời hạn bảo hành:

Tình trạng:

Còn hàng

Số lượng:

Mua ngay

Mô tả
Bình luận

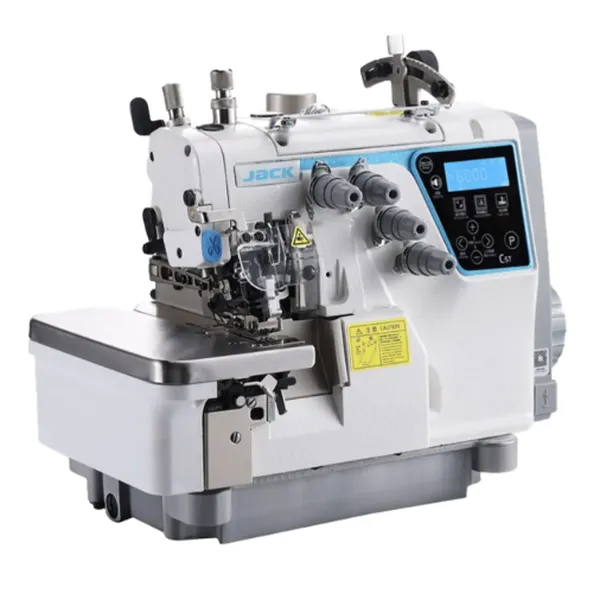

Jack C5T-4-M03/333

4-Thread, Integrated differential feeding, high speed computerised overlock machine

Top & bottom differential feeding, solve problems such as misalignment and distortion of the upper and lower layers during sewing.

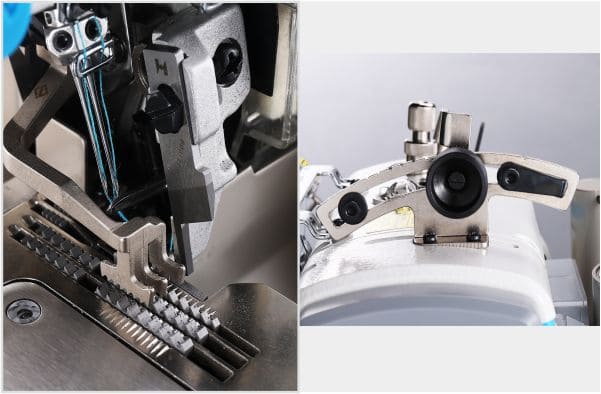

Top Feed

Thanks to the adjustment gear, it is easy to adjust the differential ratio between the upper and lower feed.

Voice Guide

Learn the new functions thanks to the voice guide, otherwise you can only use it for errors and how to solve them, by clicking on the VOICE button.

Automatic Chaincut

Thanks to the photocells, the electronic cutter is automatic at the start and/or end of the seam.

Automatic Footlifter

Also the presser foot lifter is controlled electronically and automatically thanks to the photocells which lift it before and/or after sewing.

Acceleration And Deceleration

Response increased by 14.3%: acceleration from 0 to 5500rpm in 100ms; deceleration from 5500rpm to 0 in 180ms.

Three Sewing Modes

Manual mode with full use of the pedal, semi-automatic with the use of the pedal for sewing but cutting and presser foot lift are automatic thanks to the photocells and finally automatic where the machine works only with the photocells.

Wide Adaptability

The double feed of the feed dog facilitates the processing of different types of material.

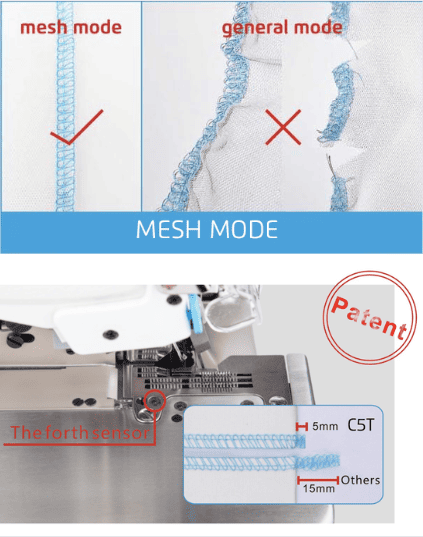

Mesh Fabric Mode

Avoid starting the seam when the photocells are covered by very thin or transparent material such as tulle and organza, guaranteeing a perfect seam.

Short Thread Cut

Thanks to the automatic electric trimmer controlled by the photocells, the cut is 8mm in front and 5mm in the back.

Industry 4.0

Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines
